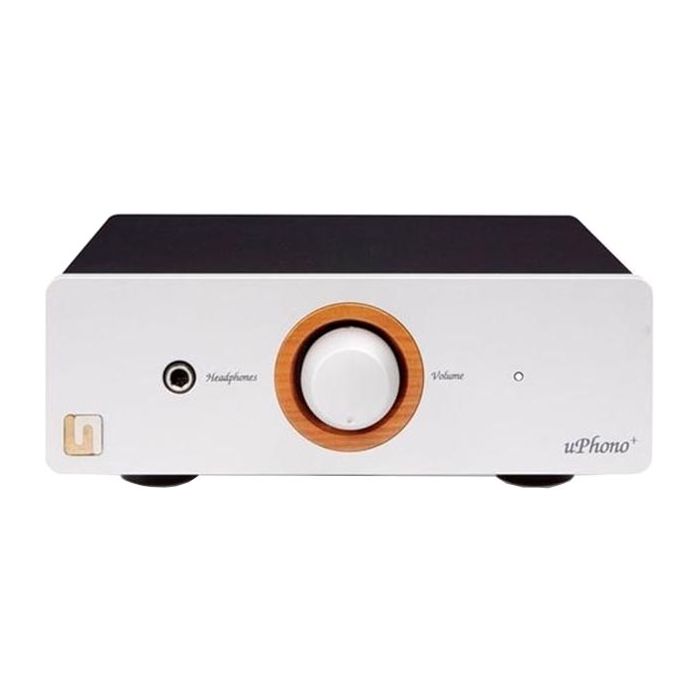

Unison Research uPhono+ Phono Stage
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Unison Research |
|---|---|
| Warranty The length of time your product is protected by warranty | 1 Year (2 Years on registration) |
Tech Specs
- Moving Magnet (MM) stage gain: 38dB @ 1kHz
- Moving Coil (MC) stage gain 58dB or 69dB @ 1kHz selectable with dip-switches
- MM cartridge input with 4 loading capacitor values (100/200/320/420pF) selectable with dip-switches
- MC cartridge input with 7 loading resistor values (5/10/25/100/250/500/1kOhm) selectable with DIP switches
- Fixed level analogue output
- Variable level analogue output: level varied with front panel volume control
- High-current headphone stage: can be used with headphones from 16 to 600 ohms impedance
- Subsonic IEC anti-rumble filter with override dip-switch
- Optimised PCB layout and widespread use of SMD componentry to minimise the length of the signal path
- Alps «Blue Velvet» potentiometer that simultaneously adjusts the volume of the headphone stage and the level of the variable output
- Low noise internal mains power supply with totally independent analogue and digital power supplies
Digital Features
- USB 24bit/96kHz max. sample rate to record your vinyl discs on PC and save them in high-resolution formats
- Toslink (96kHz) digital optical output
- S/PDIF (96kHz) digital coaxial output
- A/D conversion using the Cirrus Logic CS5341 IC
- USB asynchronous transmission with the Bravo SA9137 IC
- Digital optical and coaxial transmission using the TI DIT4096 IC
Description
The UPhono+ Phono Stage is beautifully designed for the best possible sound quality with audio enthusiasts in mind.
MM & MC Inputs
Includes MM and MC inputs, fixed variable output options as well as digital outputs.
High-Resolution A/D Conversion, Processing and More!
The UPhono+ Phono Stage has been designed with high-res A/D conversion, processing, three digital outputs and a high-current headphone stage. Uphono+ is available in two stylish finishes - black or silver.
