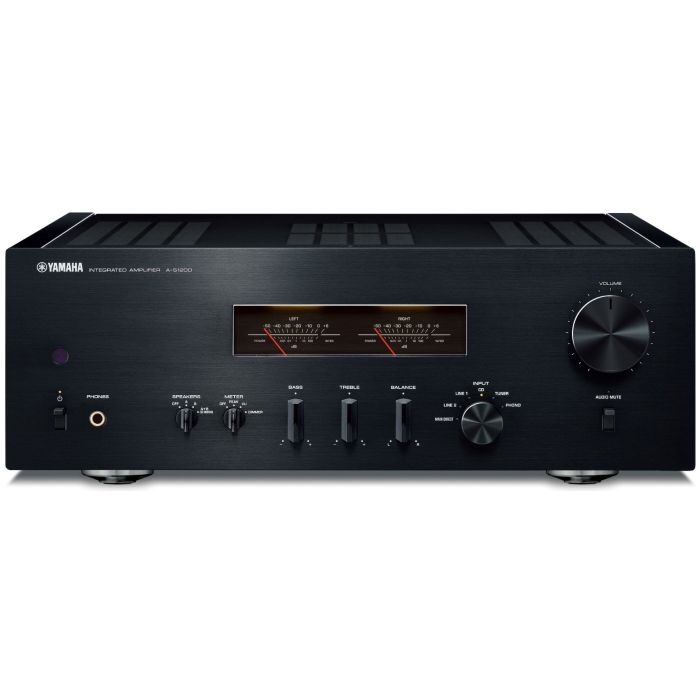

Yamaha A-S1200 Integrated Amplifier
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Features
| Manufacturer | Yamaha Audio |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Power (4O, 1kHz, 0.7% THD): 160W + 160W
- Power/Channel (8/6/4/2O): 105/135/190/220W
- Damping Factor: ≧ 250 (1 kHz, 8 ohms)
Frequency Response:
- (5Hz-100kHz): +0 / -3 dB
- (20Hz-20kHz): ＋0 / -0.3dB
- RIAA EQ: ＋/-0.5 dB (PHONO (MM/MC))
- Dimensions (W x H x D): 435×157×463mm
- Weight: 22.0 kg; 48.5 lbs
Rated Output: [20 Hz-kHz, 0.07%]
- 90 W ＋ 90 W (8 ohms)
- 150 W ＋ 150 W (4 ohms)
THD (20Hz to 20kHz): [0.5 V]
- PHONO MC → LINE2 OUT: 0.02% (1.2 mV)
- PHONO→ LINE2 OUT: 0.005% (1.2V)
- CD etc → SP OUT: 0.035% (50 W/8O）
- SNR: MC/MM: 90/96dB, CD: 110dB
Input Sensitivity: [1 kHz, 100 W/8O]
- PHONO MC: 150 uVrms/50 O
- PHONO MM: 3.5 mVrms/47 kO
- CD etc: 200 mVrms/47 kO
Main In: 1 Vrms/47 kohms
- Transformer: 625VA (Toroidal)
Description
Yamaha A-S1200 integrated amplifier is a solid-state amp designed with the purest intentions in mind. It has a massive toroidal power transformer and boasts the latest technologies for the most energetic and emotional musical performance.
Musical Expression
This amp is designed with the intention to convey the emotional and passion embedded in music. Yamahas philosophy is designed to embody the artist emotion through their hi-fi components. With a powerful 160 watts of power per channel and a “Mechanical Ground Concept”, the A-S1200 offers control, structural rigidity and stunning sound.
Toroidal Transformer
A massive toroidal transformer is employed in the A-S1200, which is usually a component seen in Yamaha’s flagship models. It assists in an accurate and faithful reproduction of music. Not only this but as a hark to vintage hi-fi and an attractive visual statement, this amp features softly lit LED level meters at the front to display the dynamics and pulse of the music.
Natural Soundstage
To achieve low impedance, Yamaha uses thick wires for the ideal ground connection. Yamaha have paid attention to all the details, even the speaker terminals are made from luxurious pure brass and securely tightened. Attention to detail helps to present a more natural and spacious soundstage.
Key Features
- High Quality Components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Level meters convey dynamics and pulse with a nod to the nostalgic Hi-Fi era
- Floating Balanced Power Amplifier
- Mechanical ground concept maximises rigidity for expressive and rhythmic bass
- Silver plating feet
