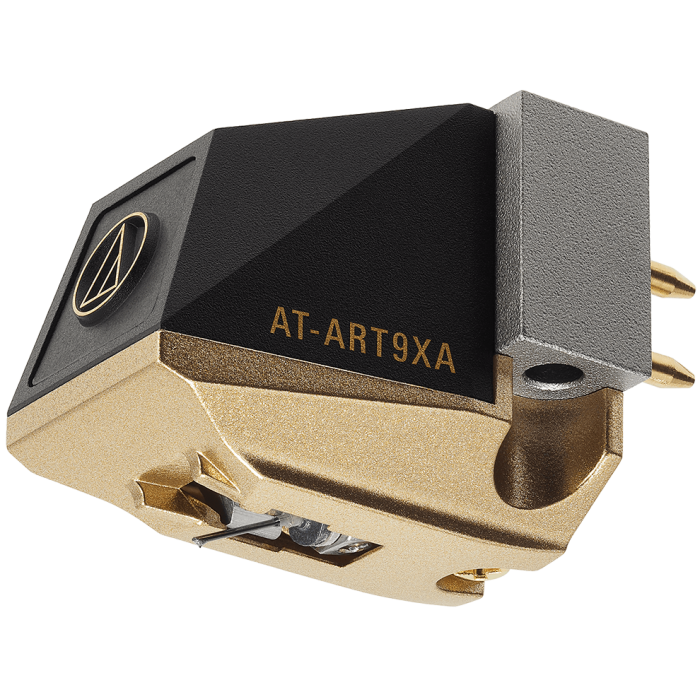

Audio Technica AT-ART9XA MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Audio Technica |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Freq Response: 20-50k Hz
- Channel Separation: 30dB (@1kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.6-2g (1.8g std)
- Stylus Construction: Nude
- Load Impedance: Min. 100 ohms
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 2.5 µH (1 kHz)
- Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Shibata
- Cantilever: 0.28 mm diameter solid boron
- Static Compliance: 20 x 10-6 cm/dyne
- Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Threaded Hole: M2.6 x 2
- Dimensions (HWD): 17.3 × 16.8 × 25mm
- Weight: 8.5 g (0.3oz)
Accessories
- Non-magnetic screwdriver
- 2 washers
- Cartridge installation screws
- Protector
- Brush
Description
Audio Technica AT-ART9XA MC Phono Cartridge, upgrade to the AT-ART7, features a non-magnetic core for superior spatial representation. Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localisation and minimal distortion
AT-ART9XA Stylus
The Shibata stylus on the AT-ART9XA ensures accurate high and mid-low range reproduction while the 0.28mm diameter solid boron cantilever provides excellent response characteristics. A neodymium magnet and permendur yoke significantly increase magnetic energy.
Hybrid Body
Audio Technica AT-ART9XA has a machined aluminium base to support both the magnetic circuit and the vibration system ensuring excellent playback stability. The hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance.
Performance
The MC Cartridge uses a redesigned coil armature which provides an output voltage of 0.2 mV (1kHz, 5 cm/sec). PCOCC coils are employed to ensure high-fidelity transmission. Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
