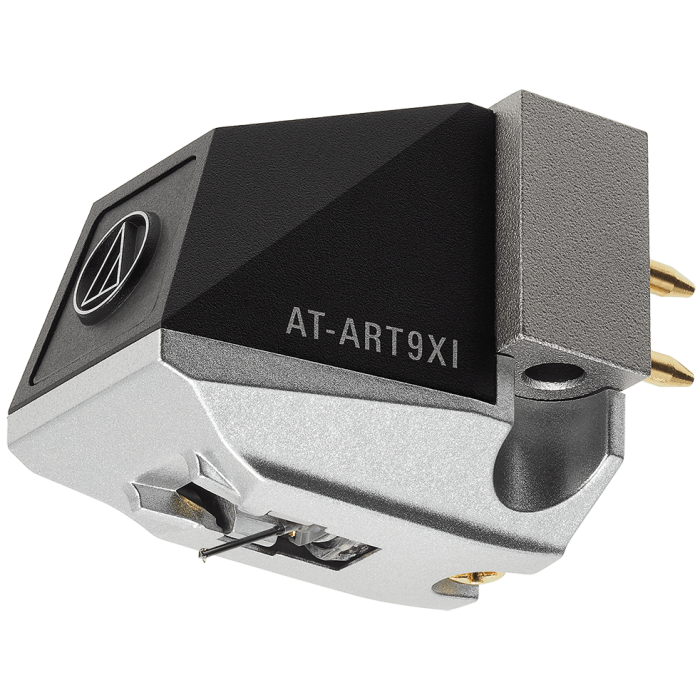

Audio Technica AT-ART9XI MC Phono Cartridge
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | Audio Technica |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Freq Response: 20-50k Hz
- Channel Separation: 30dB (@1kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.6-2g (1.8 g stnd)
- Stylus Construction: Nude
- Load Impedance: Min. 100 ohms
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 25 µH (1 kHz)
- Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Special line contact
- Cantilever: 0.28mm diameter solid boron
- Static Compliance: 25 x 10-6 cm/dyne
- Dynamic Compliance: 15 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Threaded Hole: M2.6 x 2
- Dimensions (HWD): 17.3 × 16.8 × 25.0mm
- Weight: 8.5 g (0.30 oz)
Accessories Included
- Non-magnetic screwdriver
- 2 washers
- Cartridge install screws (M2.6) (2x 5/8/10/12mm)
- Protector; brush
Description
Audio Technica AT-ART9XI MC Phono Cartridge is the new flagship magnetic core MC cartridge from Audio Technica, replacing the AT-ART9 and featuring a special line contact stylus on a 0.28mm diameter solid boron cantilever.
Reference Transducer
The “ART” in the name stands for Audio-Technica Reference Transducer, a designation given only to the brand's flagship phono cartridges. The specially designed magnetic circuit boasts a 0.5mV output (1kHz, 5cm/sec), making ART9XI easy to use and capable of reproducing the most delicate expressions while ensuring dynamic playback.
The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response for clear sound localization and minimal distortion. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Key Features
- Audio-Technica’s flagship magnetic core moving coil cartridge
- Dual moving coils are aligned in an inverted V shape
- High separation and wide response for clear sound localisation and minimal distortion
- Special line contact stylus ensures faithful reproduction of the music signal
- 0.28mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Specially designed magnetic circuit provides an output voltage of 0.5mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminum base supports magnetic circuit and vibration system for excellent stability
- Hybrid machined aluminum and high-rigidity plastic body reduces parasitic resonance
- Threaded cartridge mounting holes allow easy installation to headshell or integrated tonearm
