Hi-Fi System 26 – PS Audio Stellar Gold Pre + Stellar M700 + JBL S3900 + Cables
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Product Video
Features
| Manufacturer | Audio Affair |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
Tech Specs
The speakers - JBL S3900 Speakers (Pair)
- Type: 250 Watt 3-way floorstander
- UHF: ¾" pure-titanium compression
- HF: 1¾" Aquaplased pure-titanium compression
- Neodymium on SonoGlass Bi-Radial horn
- LF: 2x 10" pure-pulp cone, ferrite motor
- Freq Response: 33Hz – 40kHz (@-6dB)
- Sensitivity: 92dB (2.83V @1m)
- Recommended Amp: 250 Watts
- Crossover Frequencies: 850Hz, 12kHz
- Nominal Impedance: 6 Ohm
- Enclosure: 25mm thick MDF stock, ported
- Dimensions (HWD): 1001 x 370 x 368mm
- Weight: 39kg (86 lbs)
The power amplifier - PS Audio Stellar M700 Mono Power Amplifier (Pair)
- Unit Weight: 13 lbs [5.9 kg] (each)
- Unit Dimensions: 17”W x 3”H x 12”D (13"D w/connectors)
- 17”W x 6”H x 12”D (Stacked)
- Shipping Weight: 16.5 lbs [7.5 kg] (each)
- Shipping Dimensions: 22”W x 8”H x 17”D (each)
- Audio Inputs: RCA (Unbalanced)
- XLR (Balanced)
- Speaker Outputs: Copper base nickel plated binding posts (2 pair)
- DC Trigger Input: 3.5mm 5-15VDC
- Signal
- Gain: 30.5dB +/-0.5dB
- Sensitivity for rated output power: 1.6V
- Noise: 1kHz@700 Watts < -105dB
- Input impedance: Unbalanced 50KΩ
- Balanced 100KΩ
- Output Impedance: 50Hz, 2.8VRMS <0.007Ω
- Damping factor: 50Hz. 2.8VRMS
- 8Ω >1100
- 4Ω >550
- Frequency Response: 2.8VRMS into 4Ω
- 10Hz – 20KHz +/- 0.5dB
- 10Hz – 50KHz +0.1/-3.0dB
- THD&IM:
- 1KHz, 1W/4Ω <0.02%
- 10-20KHz, 1W/4Ω <0.02%
- 10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
- 1KHz, 87.5W/4Ω < 0.015%
- Output Power:
- 120vac mains, 1kHz, 1% THD
- 8Ω: 350W minimum
- 4Ω: 700W minimum
- 2Ω: Stable for musical transients
The pre amplifier - PS Audio Stellar Gold Pre Amplifier
Connectors
- Audio Inputs: RCA / Single-Ended: 2 pair
- XLR / Balanced: 2 pair
- Audio Outputs: RCA / Single-Ended: 2 pair
- XLR / Balanced: 2 pair
- Trigger Output: 2
- USB: For USB firmware update only
Performance
- Max Gain: 12.6dB
- Frequency Response: 15Hz-150kHz, +/- 0.1dB
- Input Impedance: 50K Ω RCA / Single-Ended
- 100K Ω XLR / Balanced
- Bandwidth: 5Hz-500kHz, -3dB
- THD: < .0002% @ 1kHz, 1VRMS input
- THD+N: < .0003% @ 1kHz, 1VRMS input
- IMD: .0005% @ 1VRMS input, CCIF, 20kHz mean, 1kHz difference
- Crosstalk: -115dB, One channel driven
- Output level: 10VRMS Single-ended / 20VRMS Balanced @ 1% THD+N
- Output Impedance: 100Ω
Power Requirements
- Input Power: Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
- Power Consumption: 15W
Physical
- Unit Weight: 24.1 lbs or 10.9 kg
- Unit Dimensions: 17"W x 3.3"H x 13"D (with knob, without knob 12"D) [43.18 cm x 8.38 cm x 33.02 (with knob, without 30.48 cm)]
- Shipping Weight: 27.6 lbs or 12.5 kg
- Shipping Dimensions: 22"W x 8"H x 17"D [55.88 cm x 20.32 cm x 43.18 cm]
The cable - Chord Epic XL Reference Speaker Cable - 3m Pair
- Conductor: Silver plated, OFC
- Insulation: XLPE
- Configuration: Twisted pair
- Shielding: Individual +/-
- Foil: High density foil
- Coverage: 95% metal braid
- Outer Jacket: Translucent PVC
- AWG: 12, mm2: 3.31
- Diameter: 2 x 7.5mm
Description

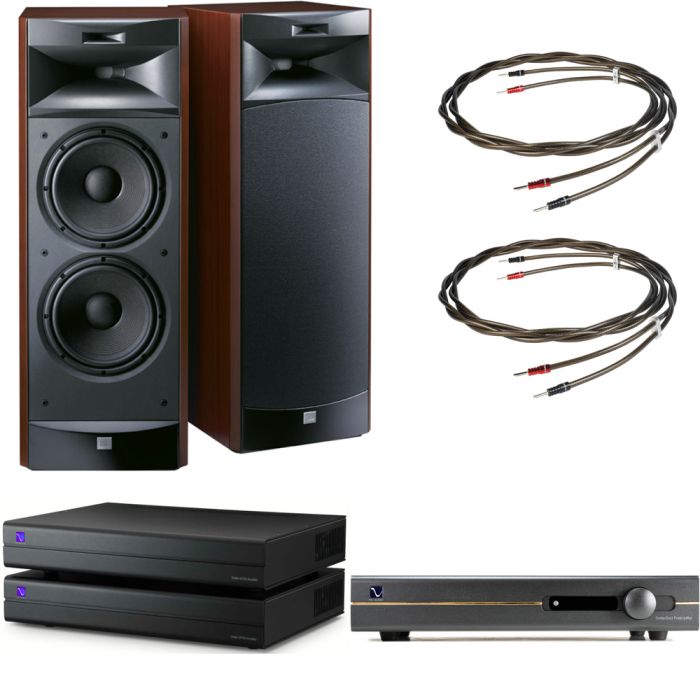

A selected HiFi system put together by our experts here at Audio Affair that consists of the PS Audio Stellar M700 Mono Power Amplifier (Pair) + PS Audio Stellar Gold Pre Amplifier + JBL S3900 Speakers (Pair) with recommended cables
The speakers - JBL S3900 Speakers (Pair)
JBL S3900 floor-standing speaker with twin 10" woofers, is perfect for dual and multi-channel home theater systems. Distinguished by its use of pro-grade components and with design cues derived from the iconic K2 S9900, the S3900 is any music enthusiast's dream come true. View Full Product Details Here
The power amplifier - PS Audio Stellar M700 Mono Power Amplifier (Pair)
PS Audio Stellar M700 Mono Power Amplifier has 700W of analog cell power and offers complete authority over your speakers. The M700 combines a Class D output stage with the Class A Analog Cell input stage for a Stellar performance. View Full Product Details Here
The pre amplifier - PS Audio Stellar Gold Pre Amplifier
The PS Audio Stellar Gold Preamplifier is a high-end unit designed to go with the Stellar Gold DAC. However, it can also be used with any other quality amplifier. Preamplifiers act as the backbone of a premium audio setup. They manage the volume as well as ensure that the sound sources are electrically separated. The PS Audio Stellar Gold Pre amplifier features a balanced design with four inputs and all-discrete circuity. The sound is warm and accurate with life and energy. Lastly, there is a front display that shows the selected source and volume level. View Full Product Details Here
Optional Cables - Chord Epic XL Reference Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
