PMC Twenty5 Sub Subwoofer
This is a click and collect item. It can not be shipped. Due to agreement with the manufacturer, it has to be collected from our Birmingham UK showroom or installed in person by one of our team. Continuing to order this item through the basket is acceptance you agree to this and we will contact you to arrange following your order.
You can earn loyalty points on every order you place on this website. If you select to create an account at checkout, your loyalty points will be saved and you can use these to discount future orders online.
Each product page shows you how many loyalty points you can earn when you order that item. Essentially, for each £1 you spend, you earn 1 loyalty point and for every 1 point earned, 1p will be added to your loyalty point balance (this is the same as some of the UK's biggest loyalty point cards). So for example, if you spend £500, you'll earn 500 loyalty points which can be used to discount a future order by £5.00.
Available - Usually ships within 2-3 days
Features
| Manufacturer | PMC Speakers |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Weight - 25 kg
- Dimensions (HxWxD) - 587 (+20 mm spikes) x 200 (238mm inc plinth bars) x 516 mm (+9mm grille)
- Speaker characteristics
- Recommended Amplifier Power - 600 Wrms
- Sensitivity - 100dB SPL @ 1m (20k Ω BAL default input sensitivity @0dB - input level -10dBu)
- Frequency Response - 30Hz - 600Hz
Description

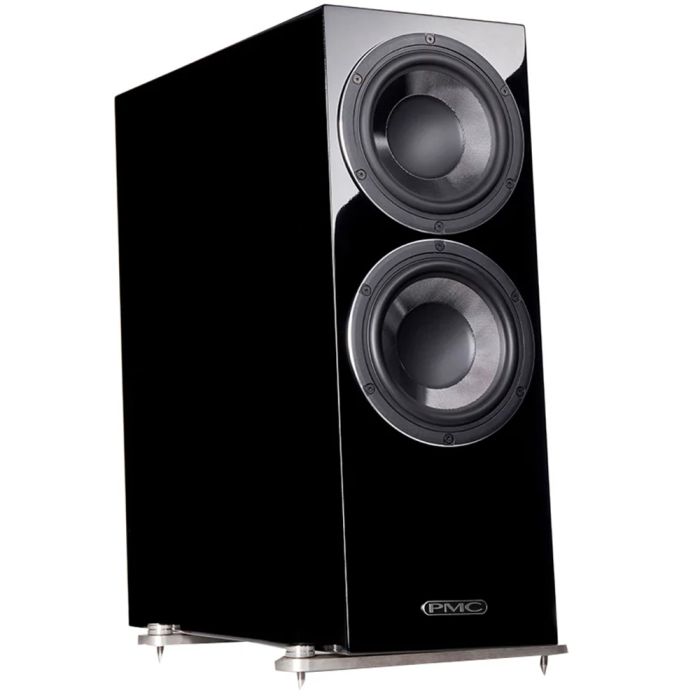

The PMC Twenty5 sub-subwoofer is a high-end unit delivering 400 watts of class D power and powerful bass. The two 170mm long-throw woofers provide bass down to 30Hz. Moreover, this is a relatively compact unit and can be used to make bookshelf speakers sound like three-way floor-standers.
Lastly, like the rest of the Twenty5 series, there are two Laminair bass ports at the rear and the spiked feet are adjustable from the top. Balanced line-level inputs are provided along with an RCA adaptor.
Two PMC designed Bass drivers
The two 170mm bass drivers used in the PMC Twenty5 sub-subwoofer are made of g-weave material. This is a kind of woven fibre-glass that is stronger than paper. However, it still adds no colouration to the sound. The cone has a long throw and a cast alloy chassis. Finally, the motor and magnet assembly have been upgraded and have 80% more power handling capacity.
Class D power
Most subwoofers and active speakers use class B amplifiers. This is far more efficient than the class A/B units used in standard amplifiers. In fact, it is up to 90% efficient. It also generates less heat and has a smaller form factor, making it perfect for cramped spaces such as a speaker cabinet.
The built-in amplifier is ultra-low-distortion and a subwoofer will enhance music as well as movies. Class D amplifies digitally. The output consists of a series of high-frequency pulses that are fed to MOSFET transistors.
This is known as pulse width modulation. The closer together the pulses are the higher the output. The output is passed through a low-pass filter to remove the pulses and recover the audio.
Connectivity and control
The PMC Twenty5 sub-subwoofer has two balanced XLR inputs, one for each channel. There is also an adaptor so that standard RCA leads can be used. Additionally, there is a screen at the back of the unit, along with controls so that the EQ and filters can be set easily. This speaker makes an excellent addition to any music or movie setup.
Laminair airflow port
Two Laminair bass ports are provided with the Twenty5 sub-subwoofer, these make the bass even more impressive and were inspired by the air intakes of Formula-One racing cars. The design reduces turbulence and drag and also reduces air noise. The result is a dynamic and powerful bass with good timing.
About home cinema systems
Subwoofers can be used both to enhance music and movies. However, they are more common in home cinema systems. They add impact to explosions as well as increasing immersion in the action. An AV amplifier is needed to make a home cinema system. These have the required decoding capability and enough built-in amplifiers to drive the speakers.
The simplest system is known as 5.1 and features a front left and right pair of speakers along with a rear pair. There is also usually a centre speaker and a subwoofer such as the PMC Twenty5 sub Subwoofer. However, there are more complex systems, such as Dolby Atmos that can have up to eleven channels, including ceiling speakers. Some amplifiers can also drive two subwoofers.
Connecting a subwoofer
The PMC Twenty5 sub-subwoofer is intended for high-end systems and consequently only has a line-level input. Subwoofers are usually driven from a dedicated output on an AV receiver. However, budget subwoofer models also have a speaker-level input that can be connected to the speaker outputs on older amplifiers.
For example, some amplifiers have outputs for two sets of speakers and one of those could be used.
This combines perfectly with the PMC Centre Speaker and are also the perfect accompaniment for any setup of the PMC Twenty5 speakers to make anything from a 2.1 speaker system to 5.1.
